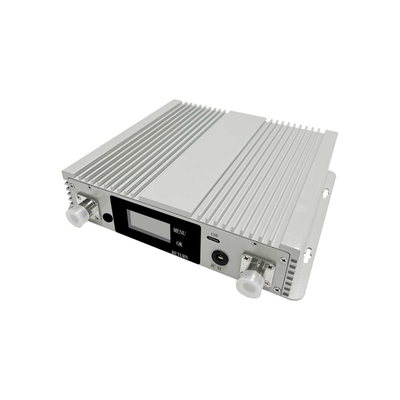

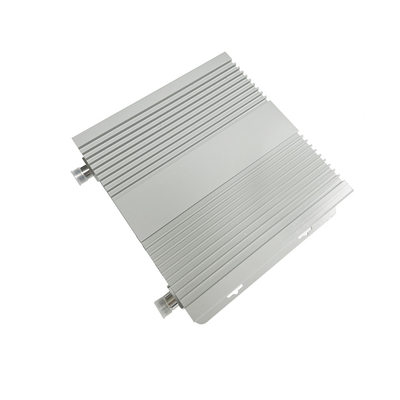

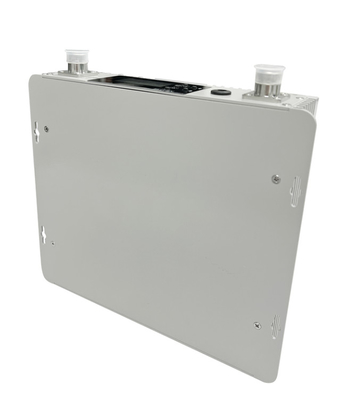

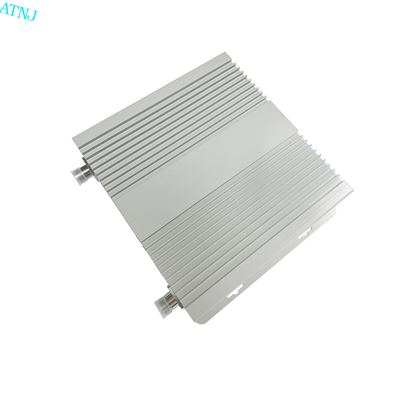

ATNJ Digital RF repeater with industrial design, Special for mobile provider need, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ Digital RF repeater is easy to install and maintain,which could help signal providers get fast solution.
1. Digital bandwidth-adjustable features allow for seamless adaptability to different frequency bands.

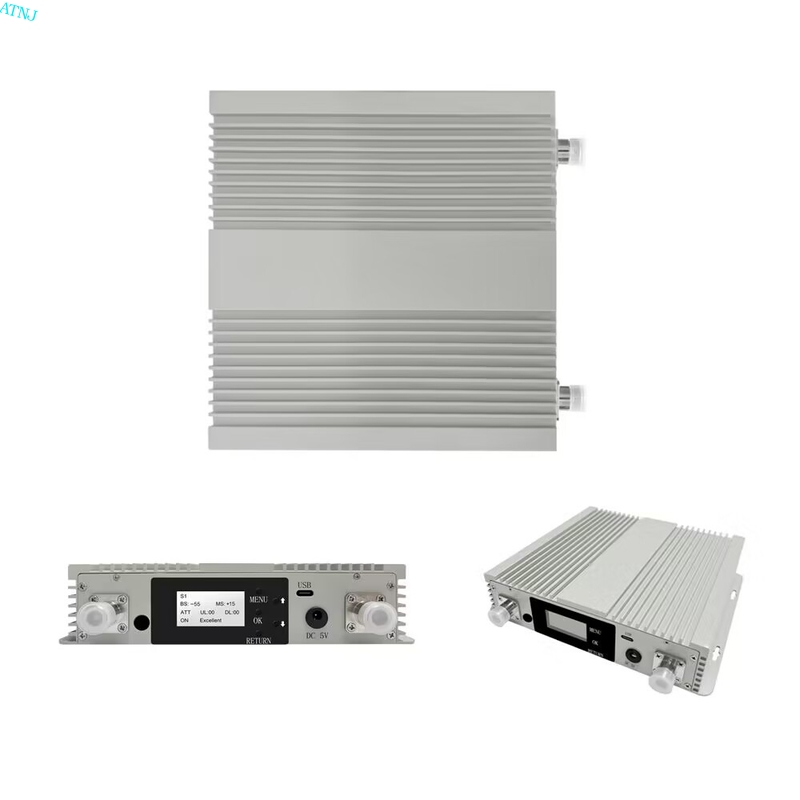

2. LCD display the input/output signal strength.
3. Auto isolation detection.
4. Improve any three mobile networks at the same time.
5. Built-in Auto Gain Control (AGC)& Auto Level Control (ALC).
6. Center frequency movable.
7. OMS Lite for remote/local control and monitoring(Optional)
| Item | Technical Specifications | ||||
| Uplink | Downlink | ||||
|
Frequency Range |
LTE1800 MHz | 1710-1730MHz | 1805-1825MHz | ||
| 1745–1765MHz | 1840–1860MHz | ||||
| 3500 MHz | 3400–3600MHz | 3400–3600MHz | |||
| Bandwidth | 1800 MHz | 20*2MHz | |||
| RF Carriers ARFCN Filtering | Digital | ||||
| Gain | 68± 3 dB | 72± 3dB | |||
| Gain control range | 30dB/1dB | 30dB/1dB | |||
| Minimum Input power | ≥ -90dBm | ||||
| Gain Flatness / PB Ripple | ≤8dB | ||||
| Max Output power | 17± 2dBm | 20± 2dBm | |||
| Automatic Level Control | ≥ 25dB | ≥ 25dB | |||
| Noise Figure | ≤ 8dB | ||||
|
EVM |
1800MHz ≤8 | ||||
| 3500MHz≤3.5 | |||||
| Group Delay | ≤ 6 µs | ||||
| ACPR | ≤ -36dBc | ||||
| Error Vector Magnitude | ≤ 8% | ||||
| VSWR | ≤ 2.5 | ||||
| Impedance | 50 Ω | ||||
|
Out of Band Gain(1800MHz) |
2,5 £ f_offset_CW< 5,0 MHz | ≤60 dB | |||
| 5,0£f_offset_CW<10,0 MHz | ≤45 dB | ||||
| 10,0 MHz £ f_offset_CW | ≤35 dB | ||||
| Connectors Type | N-Female Type | ||||
| Power Supply | DC 5V5A | ||||
| Power consumption | ≤ 20W | ||||
| Operating temperature range | -25°C to +55°C | ||||
| Dimensions | 234*230*52 mm | ||||
| Storage temperature range | -40°C to +85°C | ||||
|
Control & Monitoring |
Local | Via USB WI FI | |||
| Remote | MODEM(Optional) | ||||
Hello, welcome to ATNJ custom service for digital band selective repeater. Our model number is DS-W1. This product is from Guangdong, China, with certification of CE,ROHS,CCC. The minimum order quantity is 5, and the price is ＄280-300. We provide neutral standard package for delivery, and the delivery time is 5-10 days. We accept payment of T/T,Paypal,Western Union. Our supply ability is 10000. The connector type is N(Female), and the noise figure is ≤5dB. The operation temperature is -25℃~+55℃, and the output power is 17-20dBm. The power supply is DC 24V/5A.
Mobile Signal Repeater offers technical support and services to ensure customers get the most out of their product. Our technical support team is available 24/7 to answer any questions and help troubleshoot any issues. We also offer a variety of services, including installation, maintenance, and repair. Our team of experts can provide advice on how to best utilize the Mobile Signal Repeater in your particular environment. We strive to provide the best customer service and ensure your satisfaction with our products.
