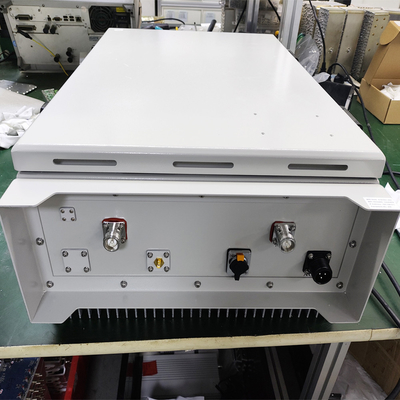

High power Digital band selective 10Watt engineering cellular signal amplifier 40dBm repeater
1. High output 10W, stable fast speed signal, perfect for large area or high building signal improving
(can reduce device quantity, and for easy adjustment and maintain )
2. Pretty easy installation
3. Die cast aluminum alloy out shell for efficient heat dissipation, waterproof, dust proof, IP40 level;
4. Upgrade intelligent WTR chip integrated circuit, reduce the attenuation, with higher load, faster speed
5. Free settings depends on environment, coverage 6000sqm
Technical Specifications:
|
SPECIFICATIONS
|
PARAMETERS
|
||
|
Frequency Range
|
1800MHz
|
1710-1735MHz, 1805-1830MHz
|
|
|
2100MHz
|
1920-1945MHz, 2110-2135MHz
|
||
| 2100MHz | 1945-1960MHz, 2135-2150MHz | ||
|
2600MHz
|
2520-2535MHz, 2640-2655MHz
|
||
|
Bandwidth
|
1800MHz
|
20MHz
|
|
|
2100MHz
|
25MHz&15MHz
|
||
|
2600MHz
|
15MHz
|
||
| RF Carriers ARFCN Filtering | Digital | ||
|
Gain
|
UL: 85±3 dB DL: 90±3dB
|
||
|
Output Power
|
UL: 25±2dBm DL: 40±2dBm
|
||
|
Automatic Gain Control
|
30dB/1dB
|
||
|
Minimum Input power
|
≥ -90dBm
|
||
| Gain Flatness / PB Ripple | ＜ 4dB | ||
| Automatic Level Control | ≥ 25dB | ||
|
EVM
|
≤8
|
||
|
VSWR
|
≤1.8
|
||
|
Noise Figure
|
≤8dB
|
||
|
Group Delay
|
≤10μs
|
||
|
RF Connector(Customers to Choose)
|
N -Type (Female)
|
||
|
Storage temperature range
|
-40°C to +85°C
|
||
|
Operating Temperature
|
-25°~+55°
|
||
|
Power Supply
|
195-265 VAC
|
||
|
Power consumption
|
≤100W
|
||
| Barometric pressure | 55 kPa -106 kPa | ||
|
Environment Conditions
|
IP40
|
||
|
Relative humidity
|
5% - 95%
|
||
|
Weight
|
≤20kg
|
||
|
Size
|
596 x 400 x 203.5 mm
|
||
Product Description
Shipping
●We will send your parcel as soon as possible after payment confirmed within 48 hours.
●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like Fedex, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
1.
Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2.
Q: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are the factory, with good trading service. We provide OEM/OEM service.
3.
Q: What is your warranty time?
A: We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of
warranty.
4.
Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
5.
Q: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
