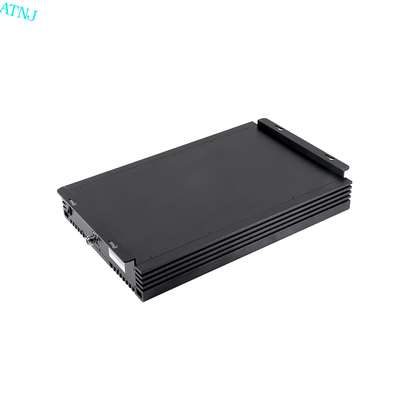

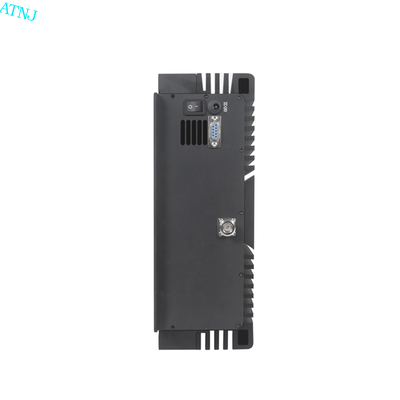

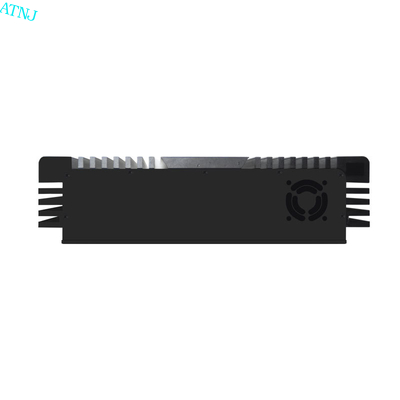

27dBm Quad Band 800 900 1800 2100MHz 4G 5G Repeater with 80dB Gain

브랜드 이름:	ATNJ
모델 번호:	AT-27-L8GDW
MOQ:	5pcs
가격:	USD+550-580+kit
지불 조건:	T/T, Western Union, PayPal, Alibaba, 은행 양도.
공급 능력:	하루에 1000+단위+.

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

CE,ROHS，CCC，TUV,BV， ISO

밴드 주파수 범위:

B20 800+B8 900+B3 1800+B1 2100

얻다:

80db

출력 전원:

27dBM

AGC 지능형 기능:

완료, 31db @ 1db/ step

ALC 지능형 기능:

완료

MGC:

완료

대역 내 잔물결:

≤ 3db

VSWR:

<= 2

노이즈 피겨:

10db

시스템 지연:

≤ 6sm

RF 연결 유형:

N/여성

무게:

9kg

포장 크기:

48x46x18cm

RF 커넥터:

N-FEMALE

번개 보호:

번개 보호로

주파수 범위를 지원합니다:

사용자 정의

장치 보증:

3 년, 무료 수리

MGC 기능:

완료

포장 세부 사항:

표준 중립 포장, 48x46x18cm (1 키트)

공급 능력:

하루에 1000+단위+.

강조하다:

4G 5G repeater with 80dB gain

quad band repeater 27dBm output

multi band repeater 800-2100MHz

제품 설명

27dBm Quad Band 800/900/1800/2100MHz 2G/3G/4G/5G Repeater System

Product Attributes

Attribute	Value
Band Frequency Range	B20 800+B8 900+B3 1800+B1 2100
Gain	80dB
Output power	27dBm
AGC Intelligent function	Done, 31dB @ 1dB/Step
ALC Intelligent function	Done
MGC	Done
In-band Ripple	≤ 3dB
VSWR	<=2
Noise Figure	10dB
System Delay	≤ 6µs
RF Connect Type	N/Female
Weight	9kg
Packing size	48×46×18cm
Lightning Protection	With Lightning Protection
Support Frequency Range	Customized
Device Warranty	3 years, Free repairment

Product Features

Improves any four mobile networks simultaneously

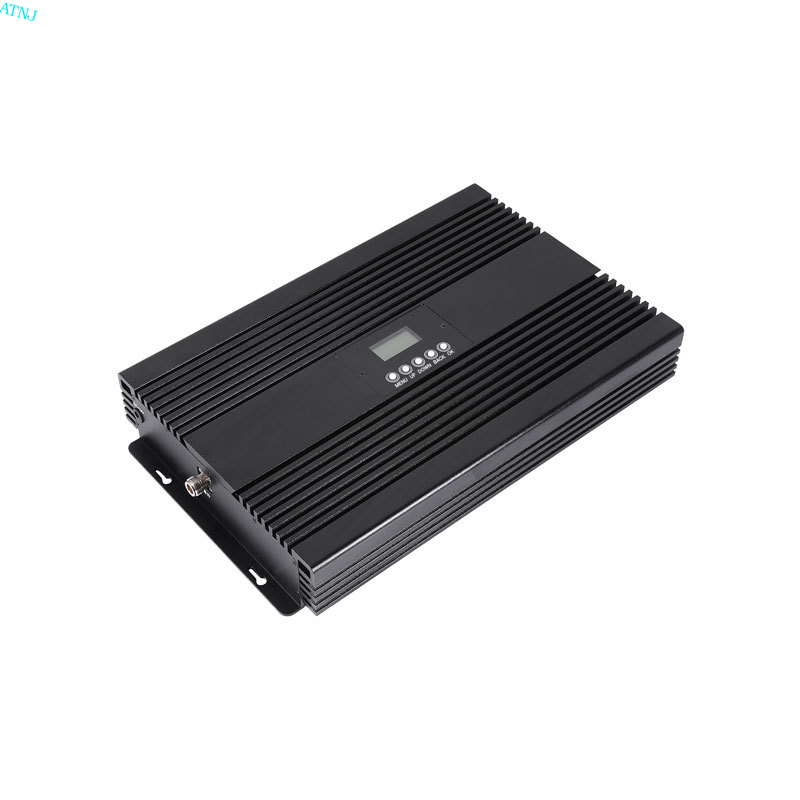

LCD displays input/output signal strength
Auto isolation detection function
Auto gain control and auto level control
Auto uplink noise reduction to avoid disturbing BTS
Smart LCD guides installation
Optional OMS Lite for remote/local control and monitoring

Technical Specifications

P/N	AT-27-L8GDW	B8 (900MHz)	B3 (1800MHz)	B1 (2100MHz)	B20 (800MHz)
Frequency Range	Uplink	880-915MHz	1710-1785MHz	1920-1980MHz	832-862MHz
Frequency Range	Downlink	925-960MHz	1805-1880MHz	2110-2170MHz	791-821MHz
Bandwidth	35MHz \| 75MHz \| 60MHz \| 30MHz
Max. Gain	Uplink	70±3 dB	70±3 dB	70±3 dB	70±3 dB
Max. Gain	Downlink	80±3 dB	80±3 dB	80±3 dB	80±3 dB
Manual Gain Control	31 dB in step of 1 dB
Automatic Gain Control	≧ 20 dB
Gain Flatness (per sub-band)	≦ ±4 dB (peak-to-peak)
Max. Input Power Without Damage	0 dBm
Output Power	Uplink	17±2 dBm	17±2 dBm	17±2 dBm	17±2 dBm
Output Power	Downlink	27±2 dBm	27±2 dBm	27±2 dBm	27±2 dBm
Spurious Emission	9KHz-1GHz	≦ -36dBm
Spurious Emission	1GHz-12.75GHz	≦ -30dBm
ACRR	±20/100MHz	≦-36dBc/30KHz
ACRR	±40/200MHz	≦-40dBc/30KHz
EVM	≦ 8%
Frequency Stability	≦ ±0.01 ppm
Noise Figure	10dB
VSWR	≦ 2
System Delay	≦ 6 µs
RF Connector	N-Female
Impedance	50 Ω
Power Supply	Input: AC100~240V, 50/60 Hz; Output: 24V8A
Power Consumption	≦ 85W
Dimensions	413×268×70mm
Weight	≦ 9kg
IP Rating	IP40
Operating Temperature	-25°C to 55°C
Control & Monitoring	Local/Remote (Optional)
