| 브랜드 이름: | ATNJ |
| 모델 번호: | DS-30-N77 |
| MOQ: | 5pcs |
| 가격: | USD+2200+PCS |
| 지불 조건: | T/T, Western Union, PayPal, Alibaba, 은행 양도. |
| 공급 능력: | 하루에 1000+단위+. |
| Parameter | Specification |
|---|---|
| P/N | DS-30-N77 | N77 (2T2R) |
| Frequency Range | Uplink: 3700 - 3980 MHz (adjustable) Downlink: 3700 - 3980 MHz (adjustable) |
| Number of Sub-bands | 1 |
| Bandwidth | ≤ 100 MHz (adjustable) |
| Max. Gain | Uplink: 70±2 dB Downlink: 80±2 dB |
| Manual Gain Control | 31 dB in step of 1 dB |
| Automatic Gain Control | ≥ 20 dB |
| Gain Flatness (per sub-band) | ≤ ±3 dB (peak-to-peak) |
| Max. Input Power Without Damage | 0 dBm |
| Output Power | Uplink: 20±2 dBm Downlink: 30±2 dBm |
| Out of Band Gain | 5,0≤f_offset_CW < 10,0 MHz: ≤45 dB 10,0 MHz≤f_offset_CW: ≤35 dB |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm 1GHz~12.75GHz: ≤ -30dBm |
| ACRR | ±100MHz: ≤-36dBc/30KHz ±200MHz: ≤-40dBc/30KHz |
| EVM | ≤ 3.5% |
| Frequency Stability | ≤ ±0.01 ppm |
| Noise Figure | ≤ 8dB |
| VSWR | ≤ 2 |
| System Delay | ≤ 3.5 ㎲ |

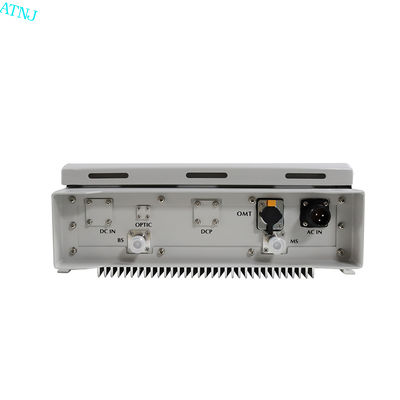

| RF Connector | N-Female |
| Impedance | 50 Ω |
| Power Supply | AC 110/220 V, 50/60 Hz |
| Power Consumption | 200W |
| Dimensions | 450*360*205 mm |
| Weight | ≤ 10kg |
| IP Rating | IP65 |
| Operating Temperature | -25 to 55 ℃ |
| Control & Monitoring | Local: Via RJ45 Remote: Via Wireless Modem (optional) |
